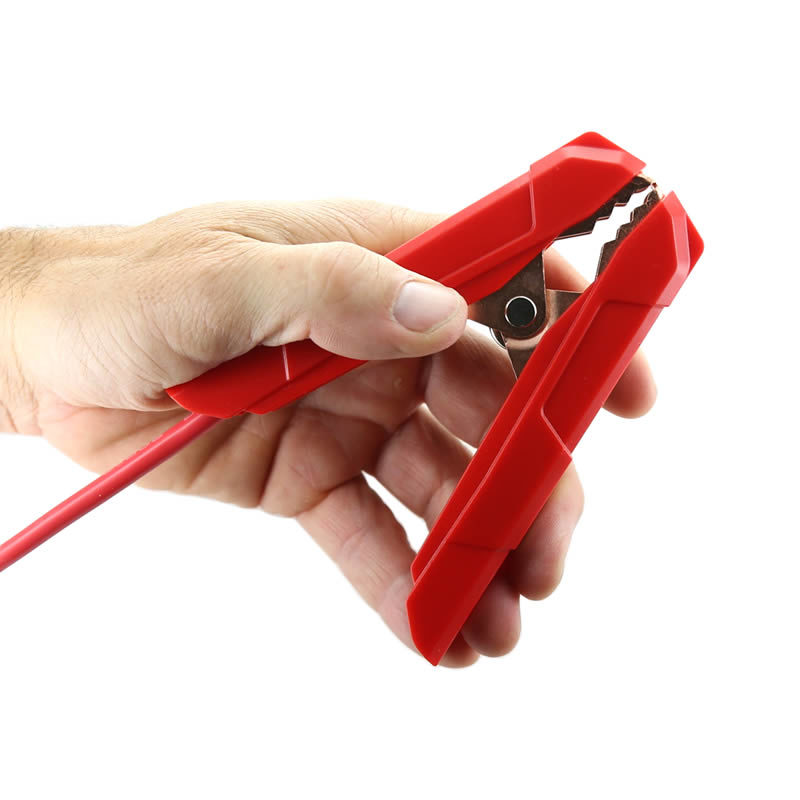

Replacement jump starter clamps for use with the Micro-Start XP-10 (Gen 1) only. These SMART Clamps are an upgrade from the original design included with the XP-10 kit. These have an all-copper construction with larger clamp (4″) and stronger clamping strength for good contact with the vehicle terminals. They also feature 5 built-in safety protections.
1. REVERSE POLARITY PROTECTION
Protects from connecting the Smart Clamps in reverse polarity. The clamps will not allow User to Jump Start and will Notify User with RED LED Flashing.
2. SHORT CIRCUIT PROTECTION
If the Smart Clamps touch or are connected together accidentally the clamps will disconnect immediately and not allow Short-Circuit.
If the BOOST BUTTON is pressed this will BYPASS the safety features of the Smart Clamps. Use CAUTION and make certain Clamps are connected correctly at Battery Terminals BEFORE pressing Boost Button.
3. REVERSE CURRENT PROTECTION
If the clamps are left on the vehicle, the Reverse Current protection will not allow a Back-Charging into the MICRO-START. In any case we still suggest never leaving the unit connected to a vehicle more than 30 seconds after a Start.
4. OVER CURRENT PROTECTION
If the Current exceeds 600 amps the Smart Clamps will shut down automatically protecting the unit from damage.
5. OVER DISCHARGE PROTECTION
When the output voltage of the MICRO-START is less than 10 Volts the clamps will not allow jump starting or further amperage discharge from the clamps.
- 1pc SMART CLAMPS (replacement for use with the MICRO-START XP-10).
- XP-10 (Gen 1 model)
JUMPER CLAMPS TIP DIFFERENCE:
Please refer to the images below to see how the tips (that plug into jump port) differ between the Smart Clamps. The XP-10 (Gen 1) clamps connector tip is curved. The Old/Original XP-1 and XP-3 clamps tips are an EC5 connector. The XP-1 (Gen 1) and current XP-3 models have thermal protection and you can see the pin hole in its clamps connector tip.
XP-10 (Gen 1) Only
SPORT, Older XP-3 & XP-1
XP-3 & XP-1 (Gen 1)
