Clampless Starting Harness (XP20, XP20-HD)


The Clampless Starting Harness connects directly to your battery, so you can easily Jump-Start or Energize your vehicle without using the MICRO-START clamps. Saves time with no need to remove the motorcycle seat, open the car hood, or even touch the battery.

  • Choose length: 20 inches, or 45 inches.
  • Works with XP-20 or XP-20-HD Micro-Starts.
  • Ring terminals connect directly to your battery.
  • Other end plugs into the Micro-Start’s jumpstart port.
  • 20-inch Harness is great for motorcycles.
  • 45-inch Harness is best for cars and trucks.
SKU: AG-MSA-10CL Categories: , Tags: ,


Accessory for Micro-Start XP-20 or XP-20-HD

The MICRO-START Clampless Harness was made so a rider or driver can easily jump-start or energize their vehicle using just their Micro-Start. No need for jumper clamps, removing the motorcycle seat, or opening your car hood or trunk. The Harness makes for quick and easy energizing to get into the vehicle, or to jump-start your ride, without having to access the battery itself.

Using the Harness

The wire harness has ring terminals that connect directly to the battery, while its other end can be tucked away for easy access, to plug into the Micro-Start’s (or similar product’s) Jump-Start port. It adds convenience and saves time if the situation arises when your vehicle needs a jump. Simply connect the Micro-Start directly to this harness and jump-start your vehicle. No need to get out your Micro-Start clamps or even touch the battery!

Longer Harness for Automobiles

Our 20-inch Clampless Harness is a good length for use in motorcycles. We also offer a longer 45-inch version for use in cars or trucks. It allows the user to route it to an area of the car so a jump-start or energizing of the car can be done without opening the hood or trunk. For example many of today’s cars will completely shut down without battery power, and you cannot even open the hood or trunk if your battery goes dead. But you could route our Harness to an area just outside the vehicle’s trunk or hood area, and in the event you come back to a dead battery simply plug in a Micro-Start (or other similar product) to energize the vehicle and open the hood or trunk to access the battery, or just jump-start the vehicle without opening the hood.

The Harness takes only minutes to install and at 45″ is usually enough length to route to an area outside your car for easy access when needed.

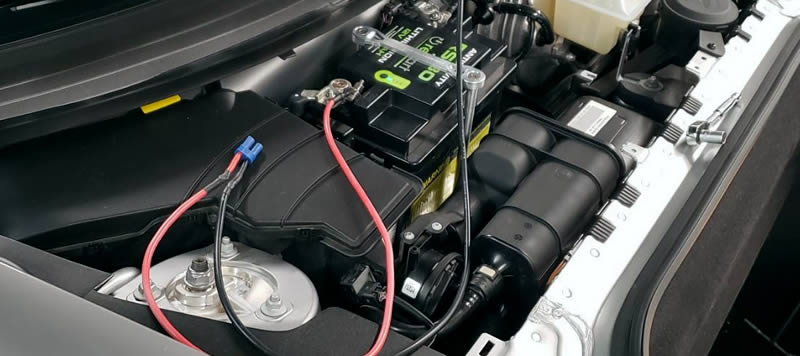

Installing Clampless Starting Harness (Long)
Installing the Clampless Harness

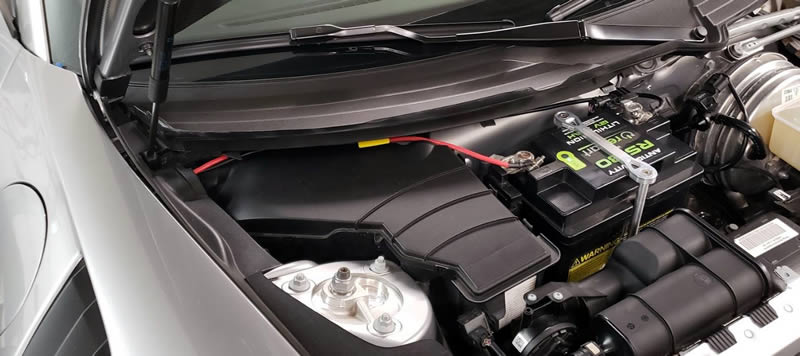

Routing Clampless Starting Harness (Long)
Routing the Clampless Harness

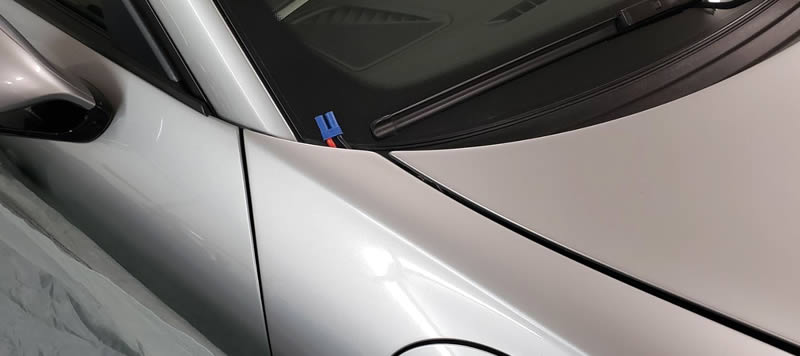

Tucked Clampless Starting Harness (Long)
Tucked Clampless Harness

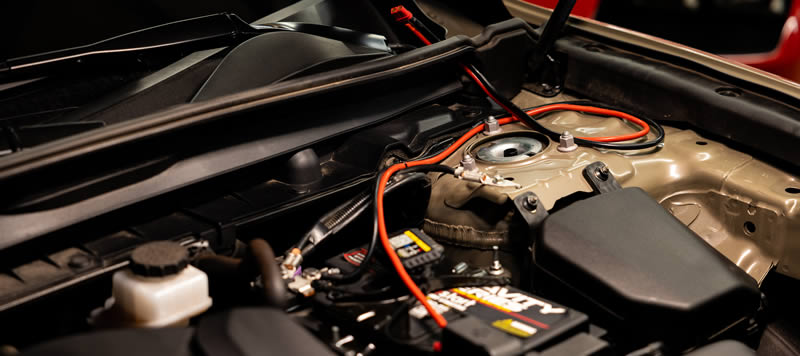

Installing the Clampless Harness

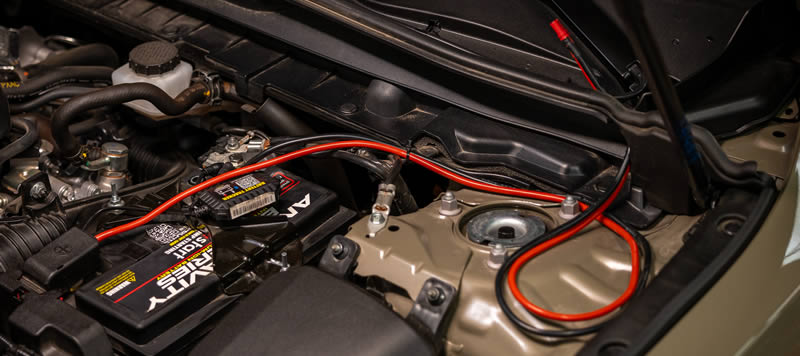

Routing the Clampless Harness

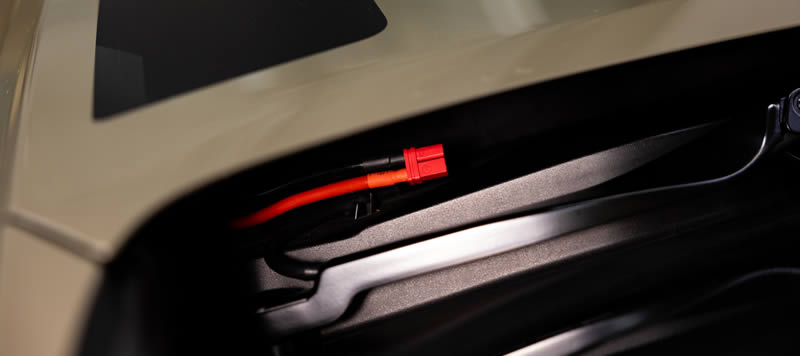

Tucked Clampless Harness

Please note the MICRO-START should be removed from this Harness once the car is started or energized. Do not leave the MICRO-START connected for more than 3 minutes when Energizing, over discharge may occur to MICRO-START. Do not leave MICRO-START connected more than 90 seconds after a jump start, back charge and damage to MICRO-START may occur.



  • XP-20
  • XP-20-HD



Please note that the connector tips differ between the Starting Harnesses. You must choose the harness that is compatible with your MICRO-START model. This harness (MSA-10C) is designed specifically for the XP-20 and XP-20-HD.


  1. The MICRO-START is for Jump-Starting ONLY through the Jump-Start port!
  2. Never leave the Micro-Start connected to your vehicle’s battery for longer than 60 seconds, or use in place of your regular battery in your vehicle.
  3. Use only the provided chargers in the Micro-Start’s kit to charge the Micro-Start.

Proposition 65 Warning

WARNING: Cancer and Reproductive Harm –

Additional information
Weight 0.5 lbs
Dimensions 8 × 3 × 2 in
Product Size

20 inches, 45 inches

Terminal Type

Ring Terminal
