SMART Clamps (Newer XP1, XP3)

$26.99

SMART Clamps for the Newly Redesigned models XP-1 and XP-3. Featuring 6 built-in protections to safely jump-start vehicles!

In stock (can be backordered)

UPC: 711811703218 SKU: AG-MSA-11TP Category: Tags: ,
Description

PLEASE NOTE: These Replacement Clamps are for the NEWER models of the MICRO-START XP-1 and XP-3 ONLY, which have a new Thermal Protection feature. They will Not work with the Original/Older version of the XP-1 and XP-3! If you have the older models, go Here.

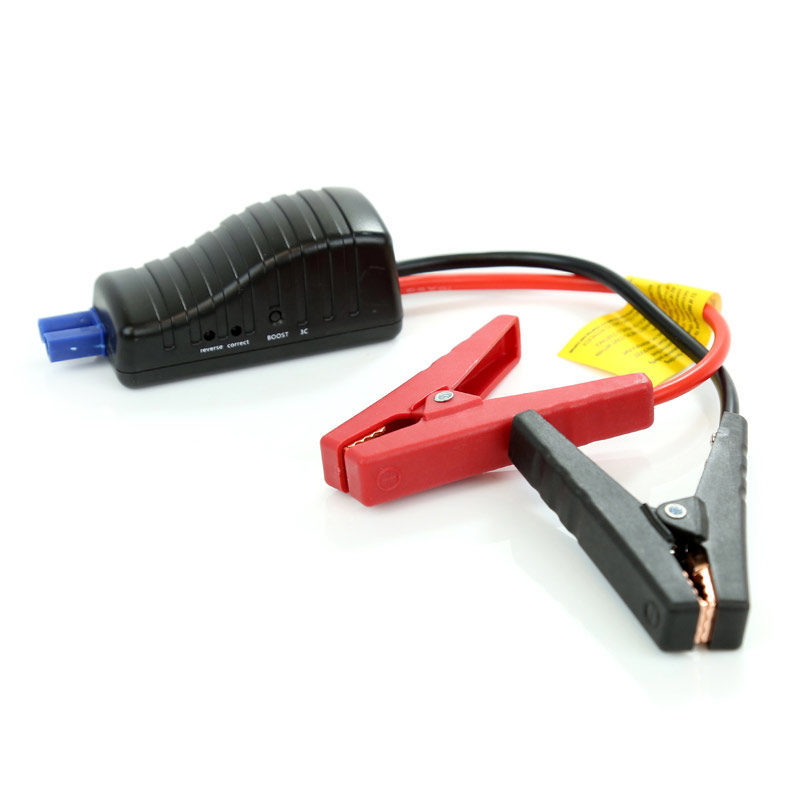

SMART CLAMPS

These are replacement mini clamps for the NEWER models of the MICRO-START XP-1 and XP-3. These SMART jump-start Clamps have additional safety features built-in for full protection. (Note: the clamps also have a stronger plastic clamp joint where previously it was a metal pin.)

Reverse-Polarity Protection built into Clamps

1. REVERSE POLARITY PROTECTION

Protects from connecting the Smart Clamps in reverse polarity. The clamps will not allow User to Jump Start and will Notify User with RED LED Flashing.

Short-Circuit Protection built into Clamps

2. SHORT CIRCUIT PROTECTION

If the Smart Clamps touch or are connected together accidentally the clamps will disconnect immediately and not allow Short-Circuit.

CAUTION

If the BOOST BUTTON is pressed this will BYPASS the safety features of the Smart Clamps. Use CAUTION and make certain Clamps are connected correctly at Battery Terminals BEFORE pressing Boost Button.

Reverse-Current Protection built into Clamps

3. REVERSE CURRENT PROTECTION

If the clamps are left on the vehicle, the Reverse Current protection will not allow a Back-Charging into the MICRO-START. In any case we still suggest never leaving the unit connected to a vehicle more than 30 seconds after a Start.

Over-Current Protection built into Clamps

4. OVER CURRENT PROTECTION

If the Current exceeds 600 amps the Smart Clamps will shut down automatically protecting the unit from damage.

Over-Discharge Protection Clamps

5. OVER DISCHARGE PROTECTION

When the output voltage of the MICRO-START is less than 10 Volts the clamps will not allow jump starting or further amperage discharge from the clamps.

Thermal Protection Clamps

6. THERMAL PROTECTION

Protection against over-heating of Clamps due to Over-Cranking of Vehicle which can generate high heat and damage unit. The Smart Clamps will sense high heat and shut off Clamps.

INCLUDES

  • 1pc SMART CLAMPS (replacement for use with NEWER models of Micro-Start XP-1 and XP-3).

COMPATIBLE WITH:

  • XP-1 (New Design)
  • XP-3 (New Design)

XP-1 Micro-Start Power Supply & Jump-Starter   XP-3 Micro-Start Power Supply & Jump-Starter

JUMPER CLAMPS TIP DIFFERENCE:

Please refer to the images below to see how the tips (that plug into jump port) differ between the Smart Clamps. The XP-10 clamps connector tip is curved. The Old XP-3 and XP-1 clamps tips are an EC5 connector.The New XP-3 and XP-1 have thermal protection and you can see the pin hole in its clamps connector tip.

XP10 Harness Connector Tip

XP-10 Only

SPORT, XP5, Old XP1, Old XP3 Harness Connector Tip

SPORT, Older XP-3 & XP-1

New XP1, New XP3 Harness Connector Tip

New XP-3 and XP-1

SAFETY NOTES:

  1. The MICRO-START is for Jump-Starting ONLY through the Jump-Start port!
  2. Never leave the Micro-Start connected to your vehicle’s battery for longer than 30 seconds, or use in place of your regular battery in your vehicle.
  3. Do not try to charge the Micro-Start directly from your battery through the jump start port. Severe damage can result!

Proposition 65 Warning

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Additional information
Weight 0.5 lbs
Dimensions 8 × 3 × 2 in
